NOTE: outlet is Upward, and connector size is G1/2，inlet connector size is G3/4

Description:

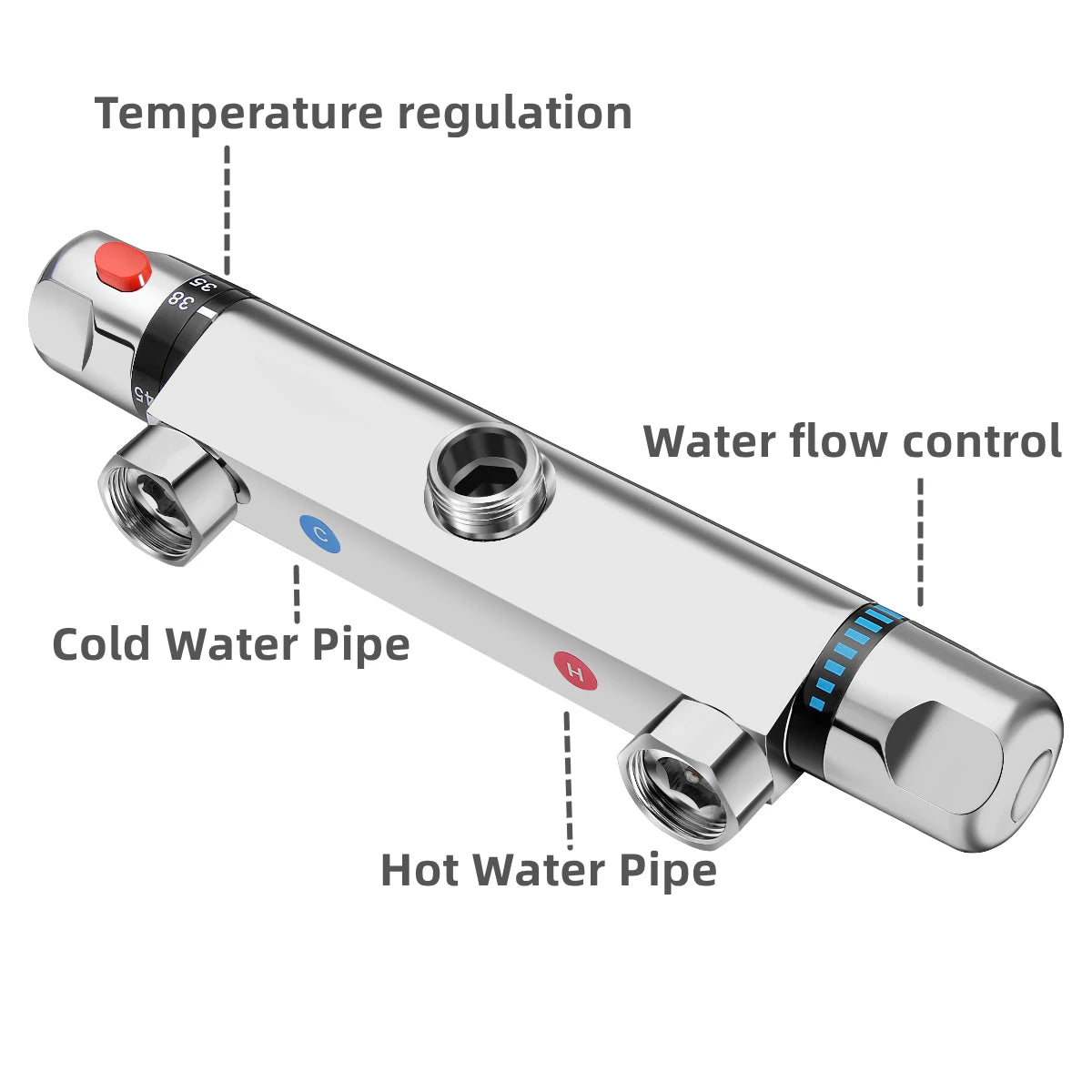

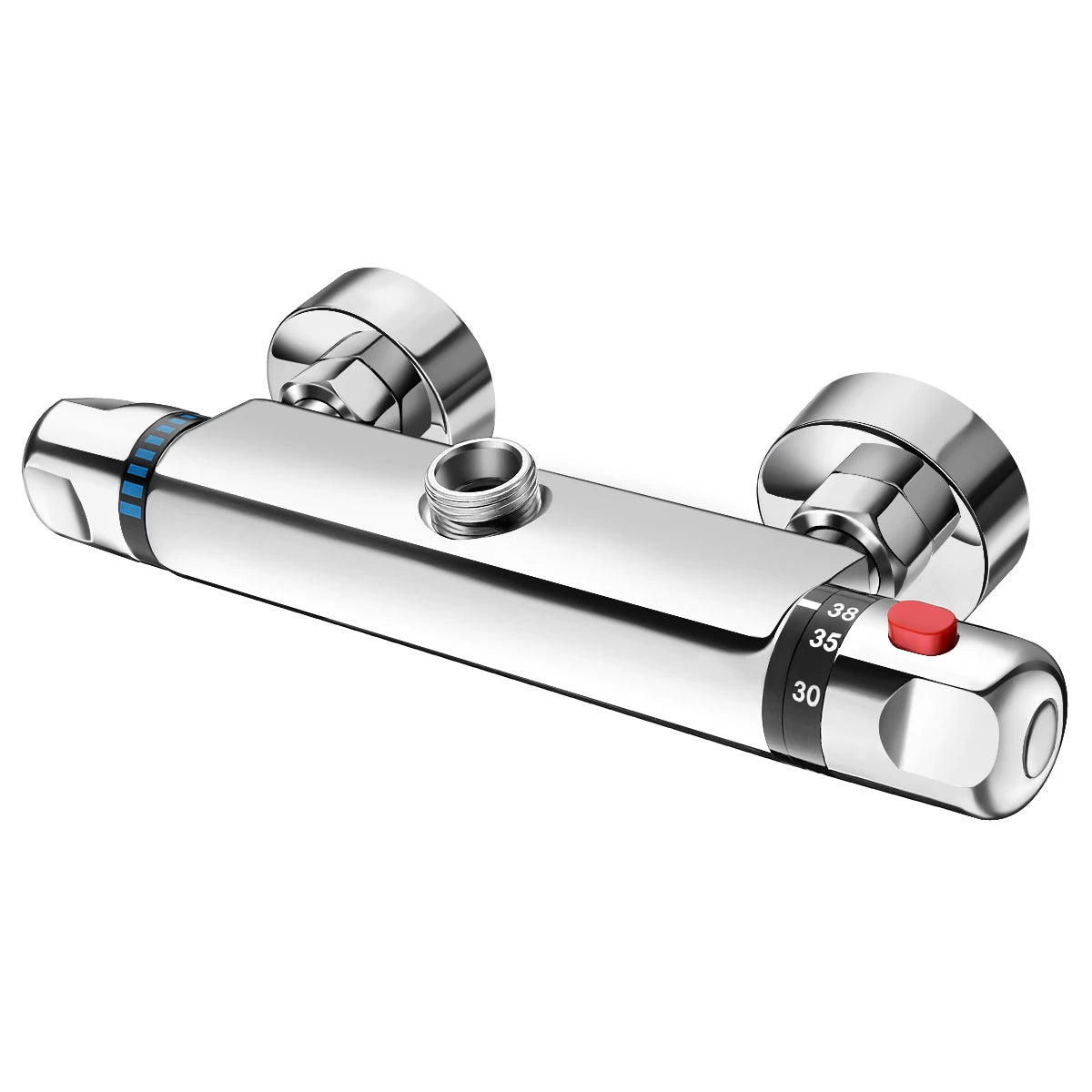

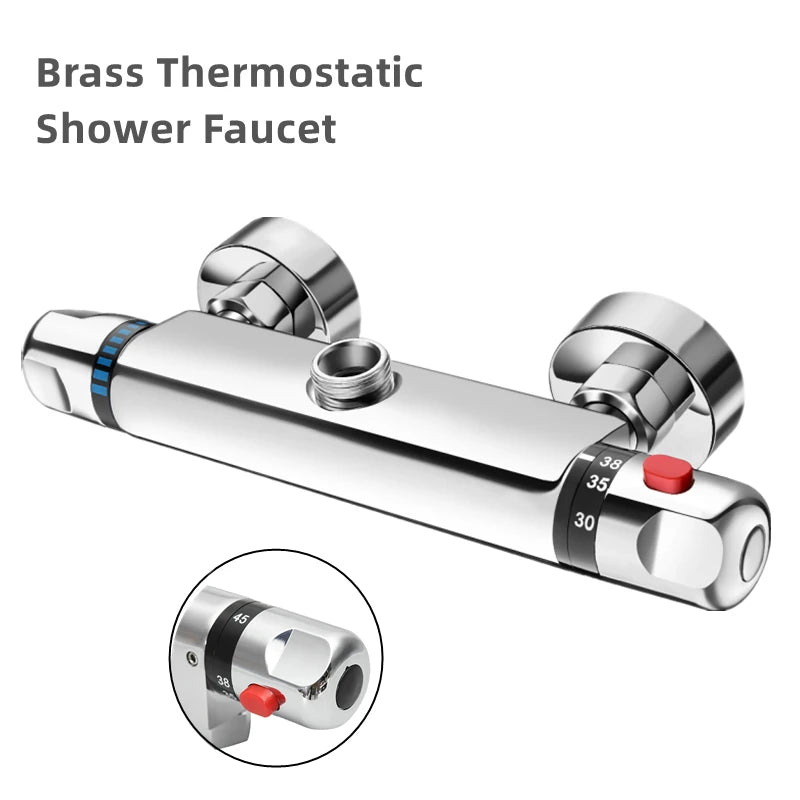

1. Wall-mounted bath filler with shower outlet.

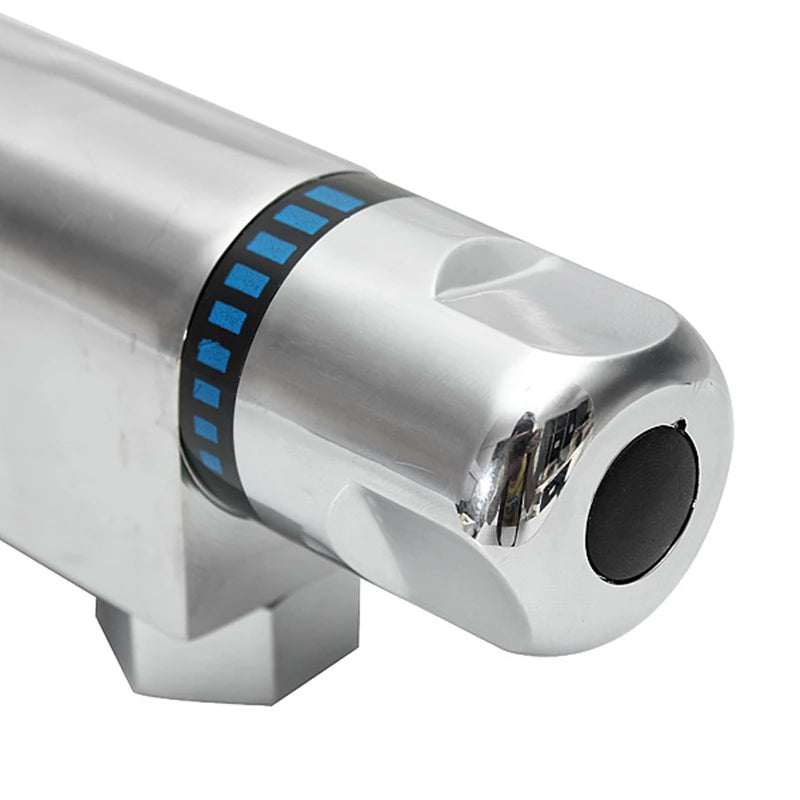

2. The left control knob controls the water on/off.
3. The right control knob is the temperature control.

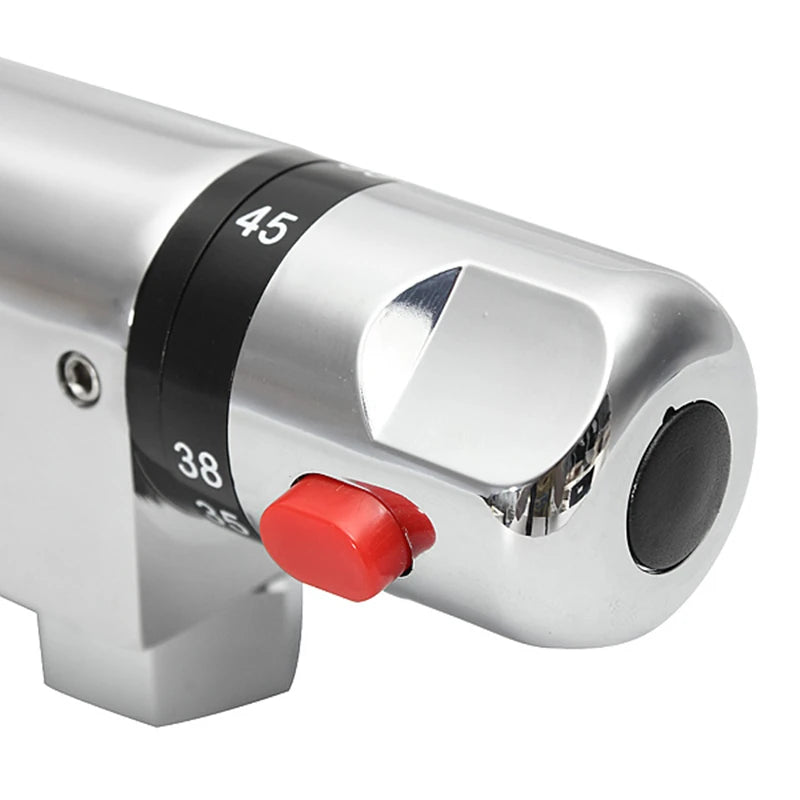

4. This is thermostatic for comfort and safety, and there is an override stop button set at 38°C.
5. A high quality chrome plated finish and a durable, modern design to complete your bathroom in style.

Specification:
Material: Chrome, brass
Security stop: 38°C (automatic anti-scald device)
Recommended pressure: 0.1-0.5Mpa
Cold water supply temperature: 8-29°C
Hot water supply temperature: 55-85°C
Outlet water temperature range: 20-50°C

Package Included:
1X Thermostatic shower valve
2X Wall bracket

Notes:
1.Please allow 1-3mm error due to manual measurement, please make sure you do not mind before you bid.
2.The colors may have different as the difference display, please understand.

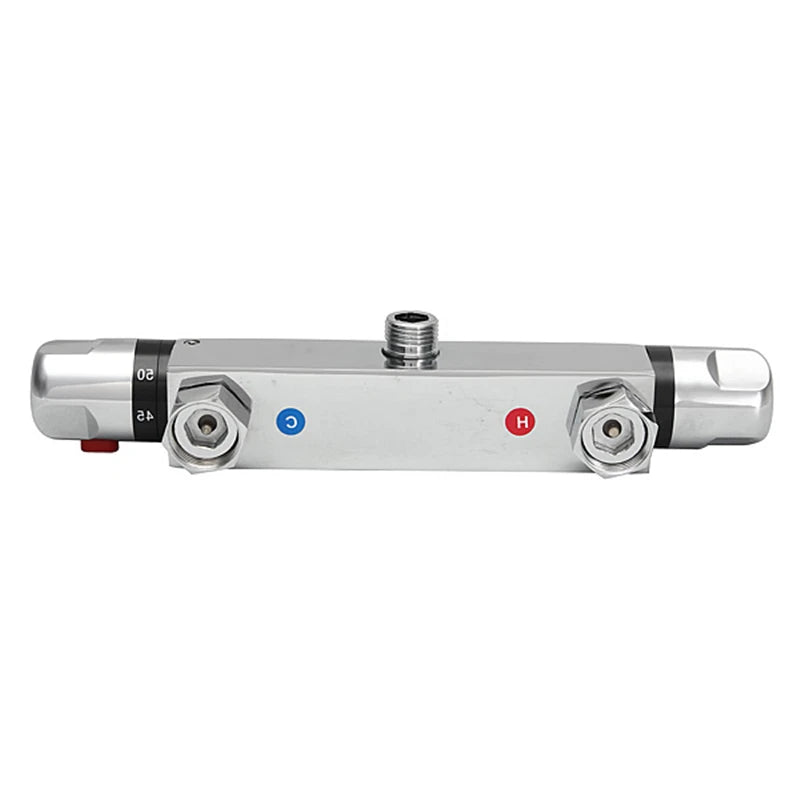

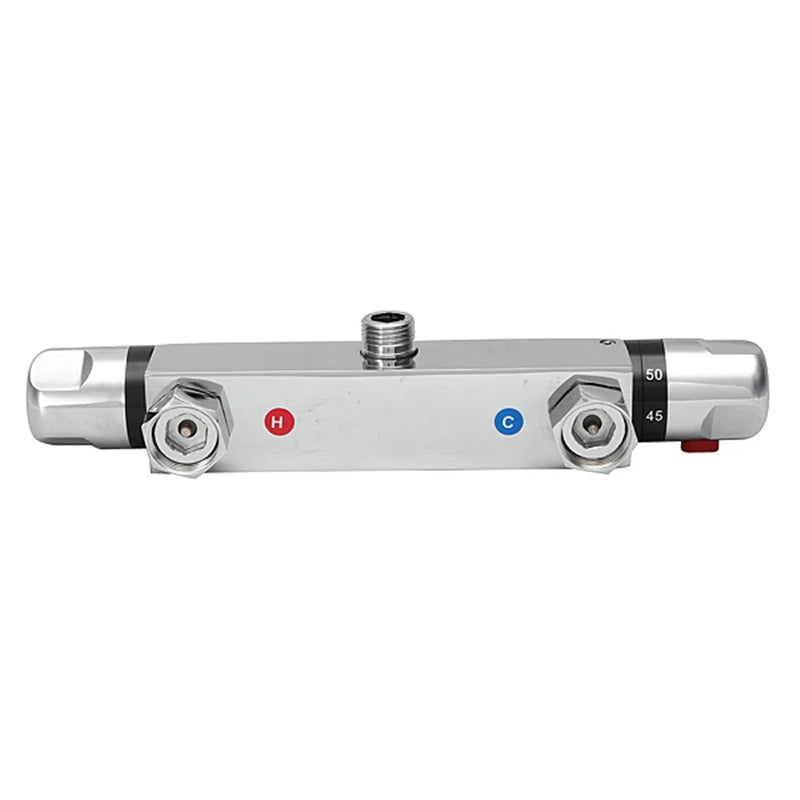

3.The cold and hot pipes should be respectively screwed into the two water inlets.You should connect them in right way, or it can not work normally.
