Description

1. Premium ABS Construction & Precise Dimensions

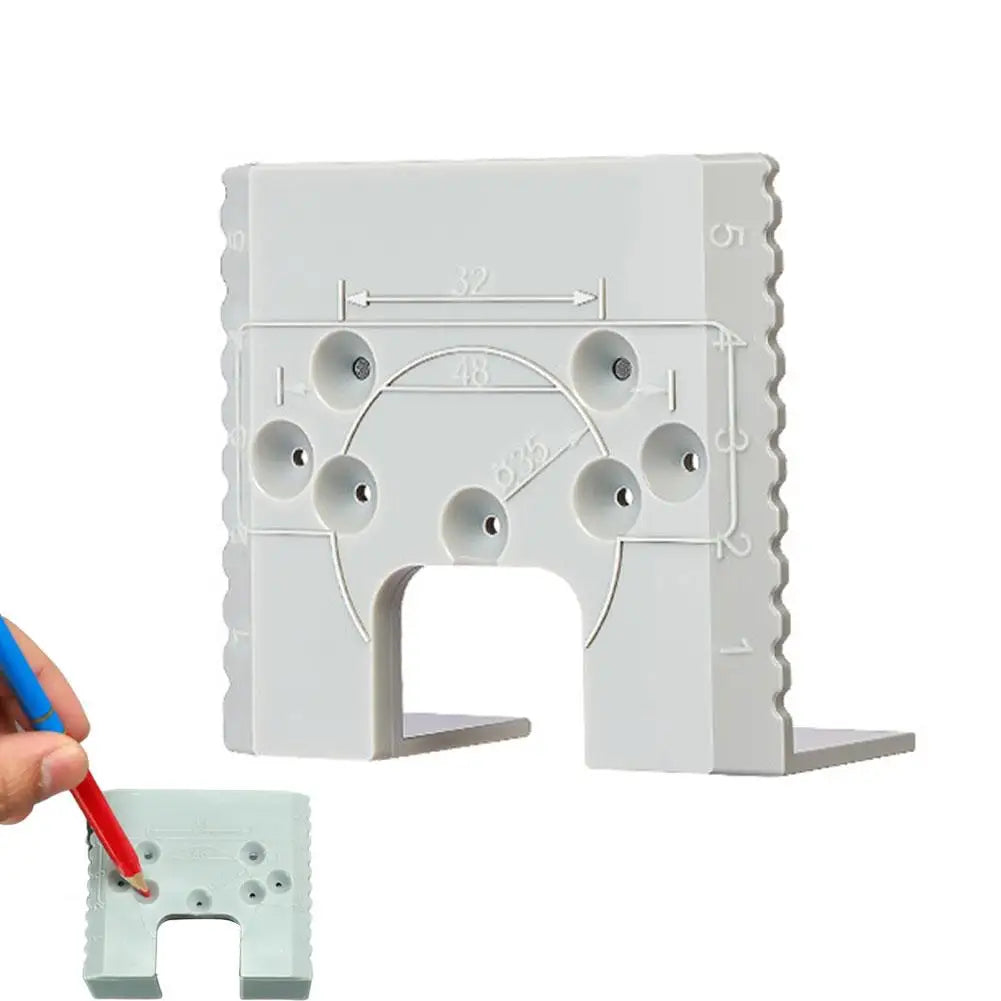

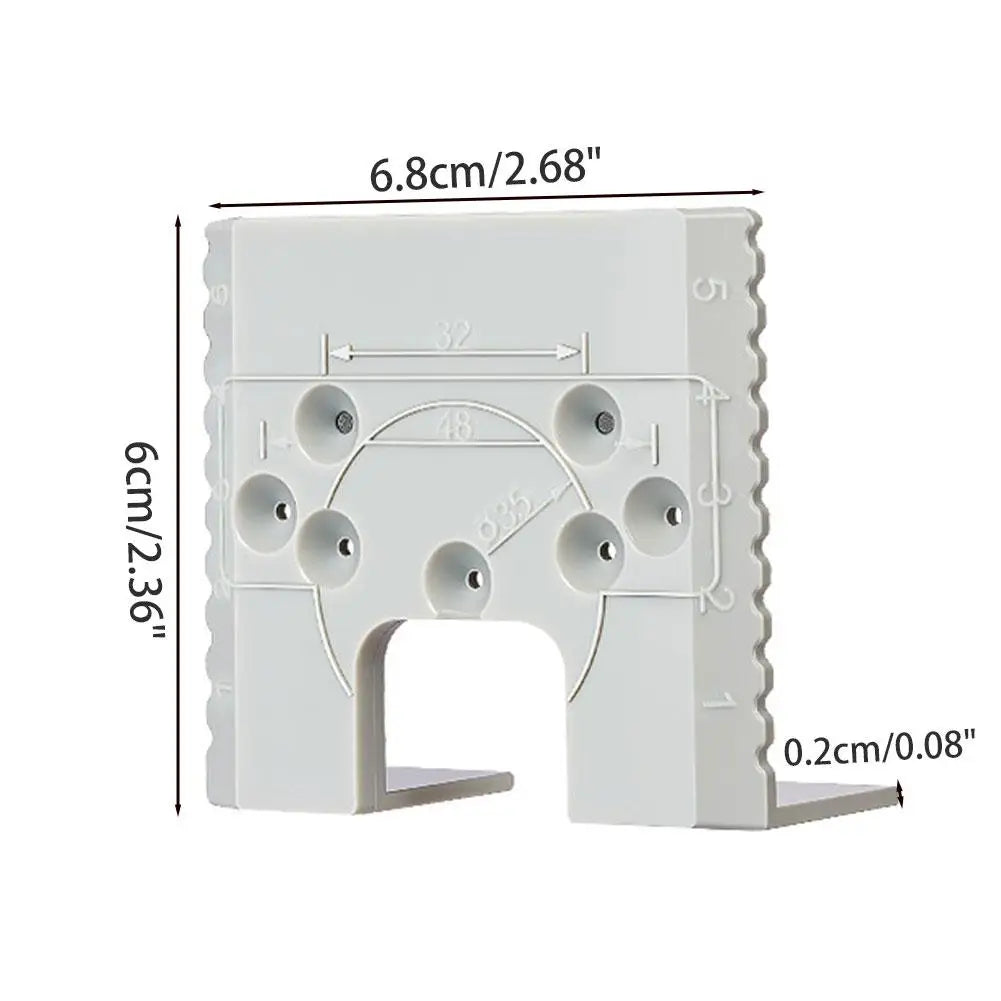

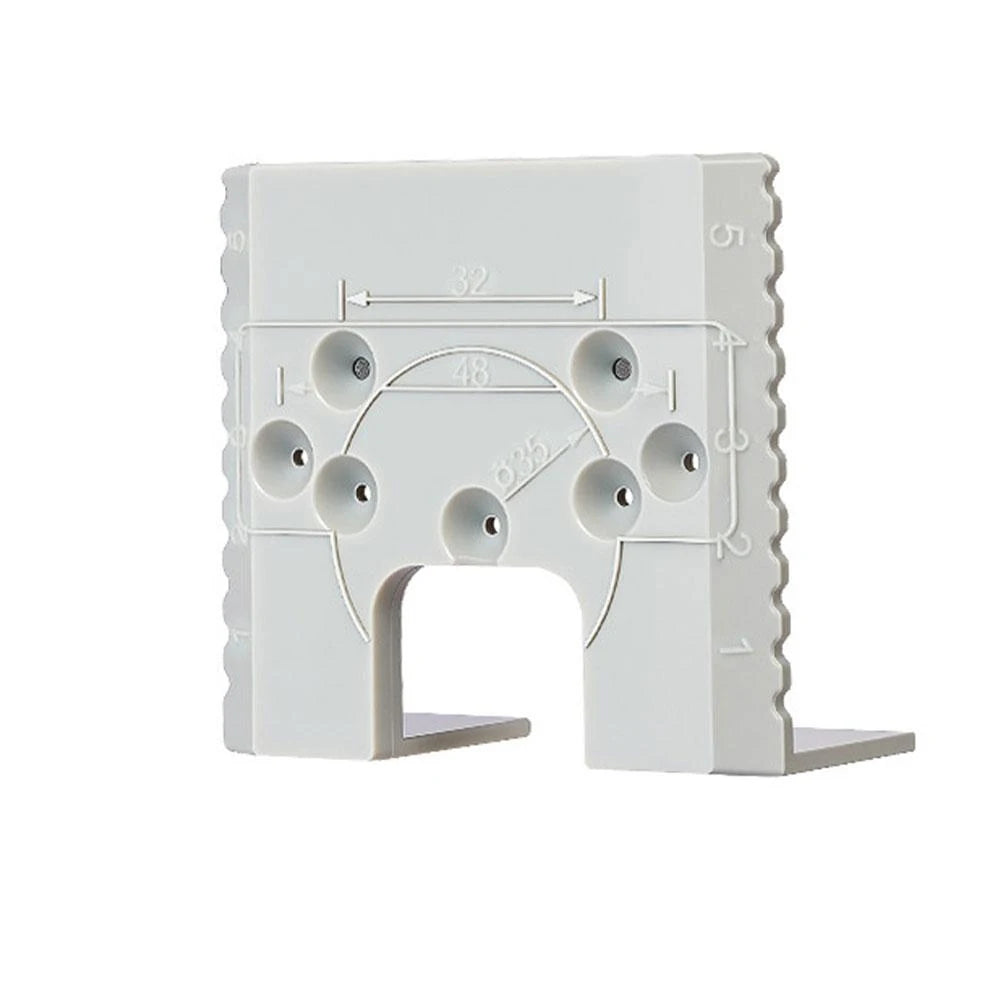

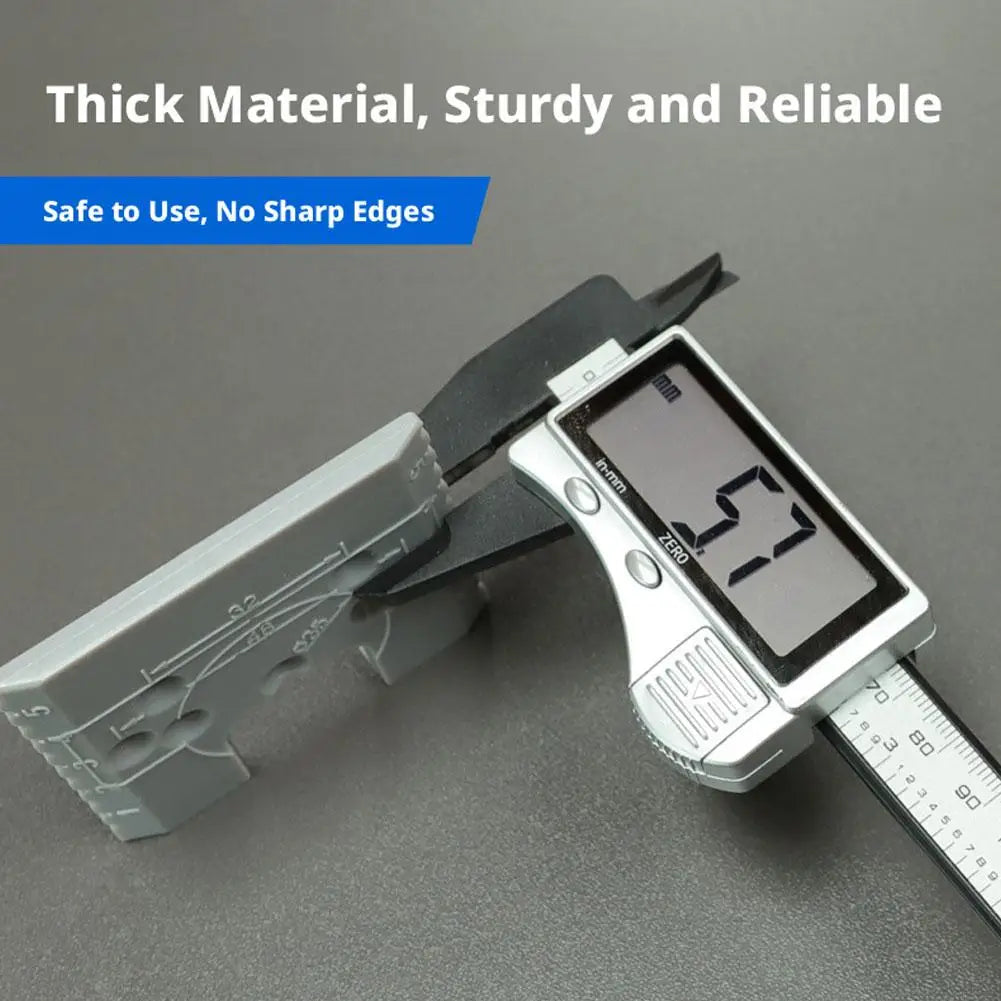

Crafted from ABS plastic, this hinge installation jig is engineered for reliability. It measures approximately 6.8 cm (2.68") in width, 6.0 cm (2.36") in height, and 0.2 cm (0.08") in thickness, providing a compact and manageable tool for various woodworking applications.

2. Accurate Hinge Positioning

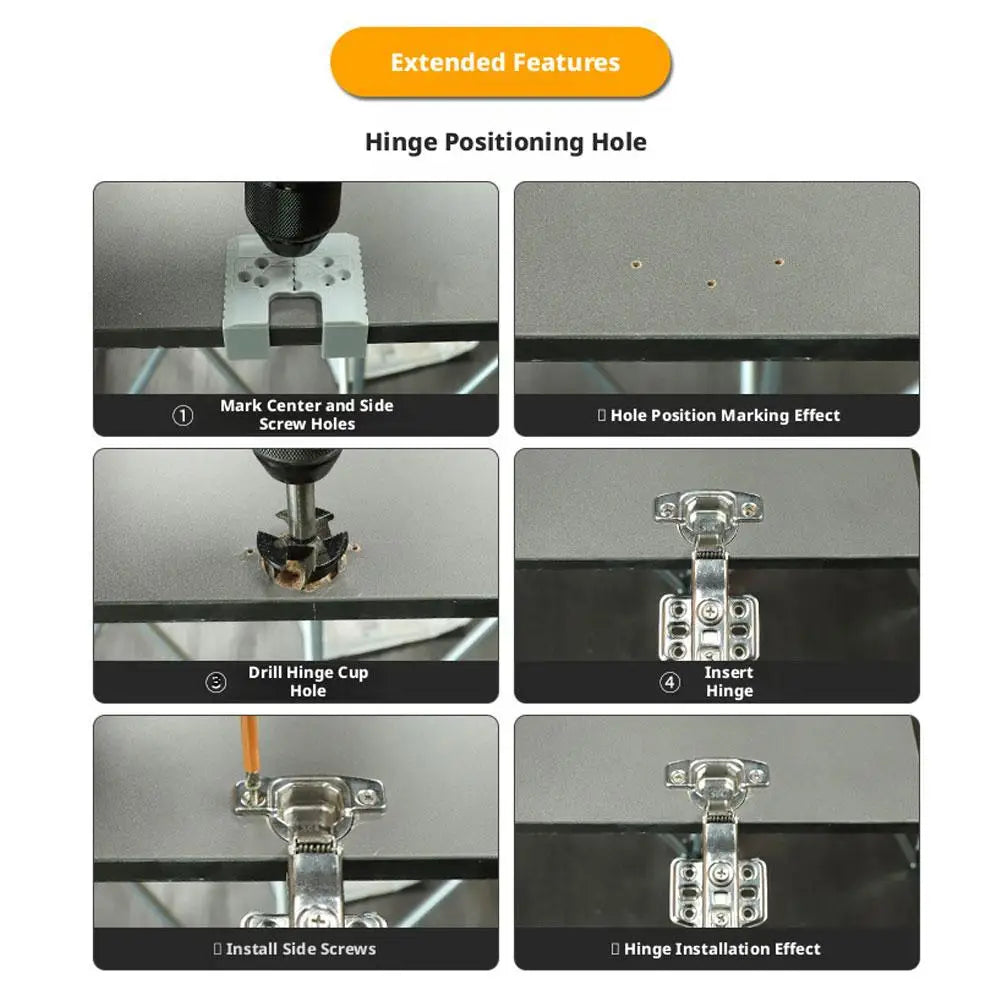

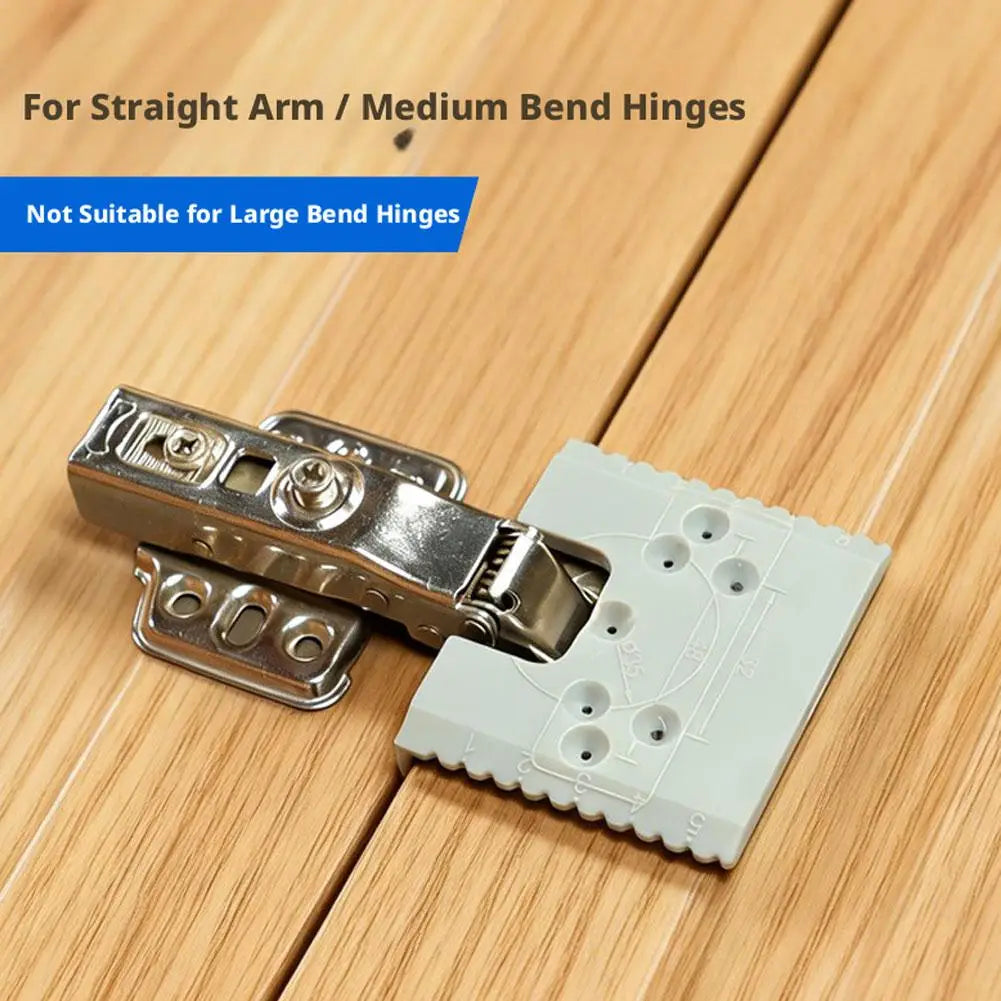

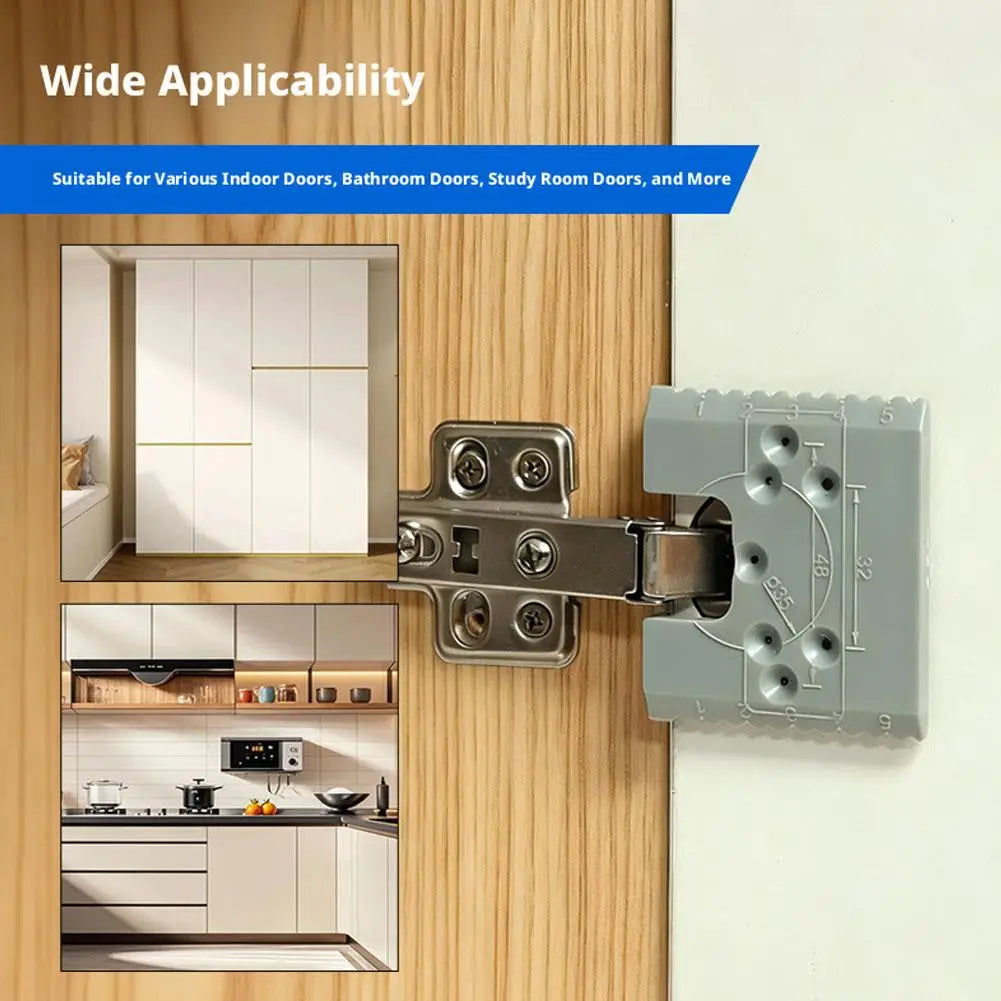

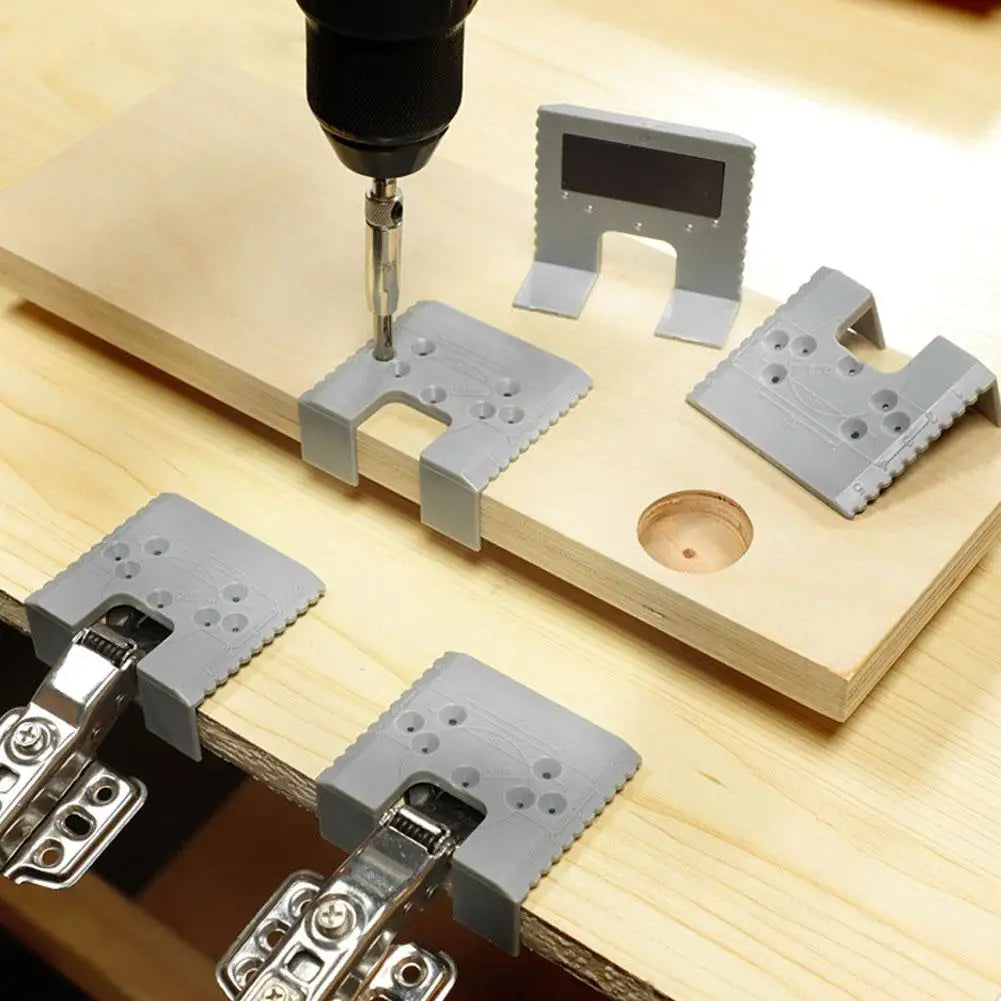

Designed specifically for 35mm straight or semi-overlay hinges, this multi-functional jig simplifies the installation process. It allows for accurate marking and drilling of both the hinge cup hole and the adjacent screw holes, ensuring precise alignment for your cabinet doors.

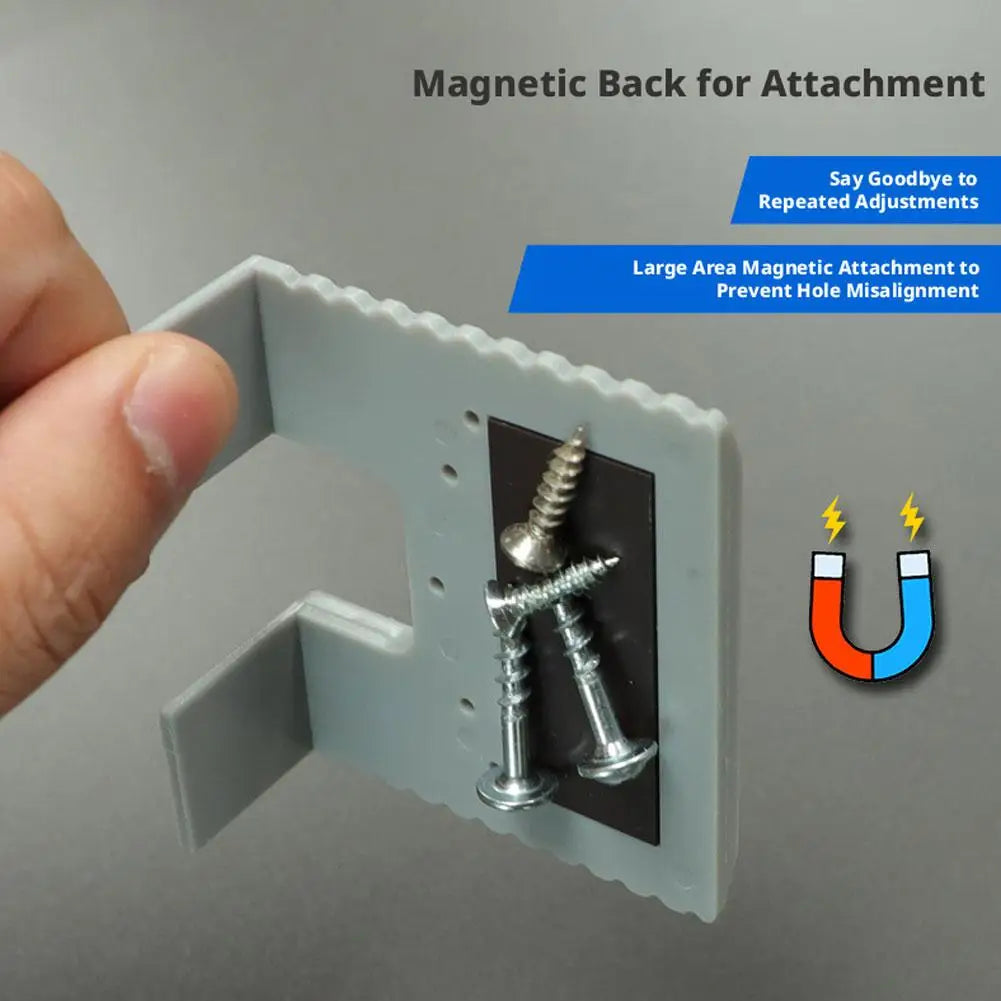

3. Magnetic Anti-Displacement Design
Experience enhanced stability with the integrated large-area magnetic backing. This feature securely holds the jig in place on your workpiece, effectively preventing any movement or displacement during drilling. This means you can achieve accurate hole placement without constant readjustments.

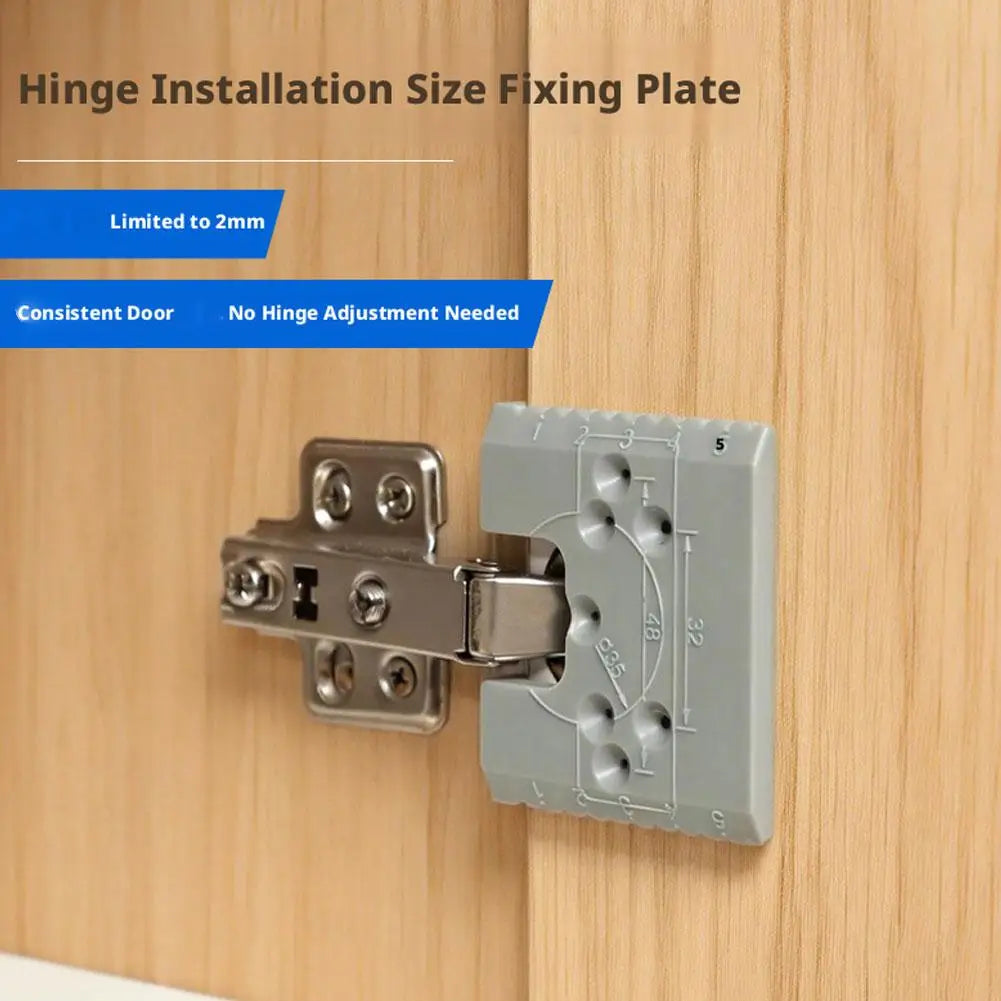

4. Make sure the door panel remains at a consistent 2 millimeters
This hinge installation fixture has been meticulously designed to ensure that the door is precisely 2 millimeters away from the hinge, thus enabling a consistent, neat and professional appearance throughout all your installation processes. Eliminate the need for tedious post-installation hinge adjustments, saving you time and effort.

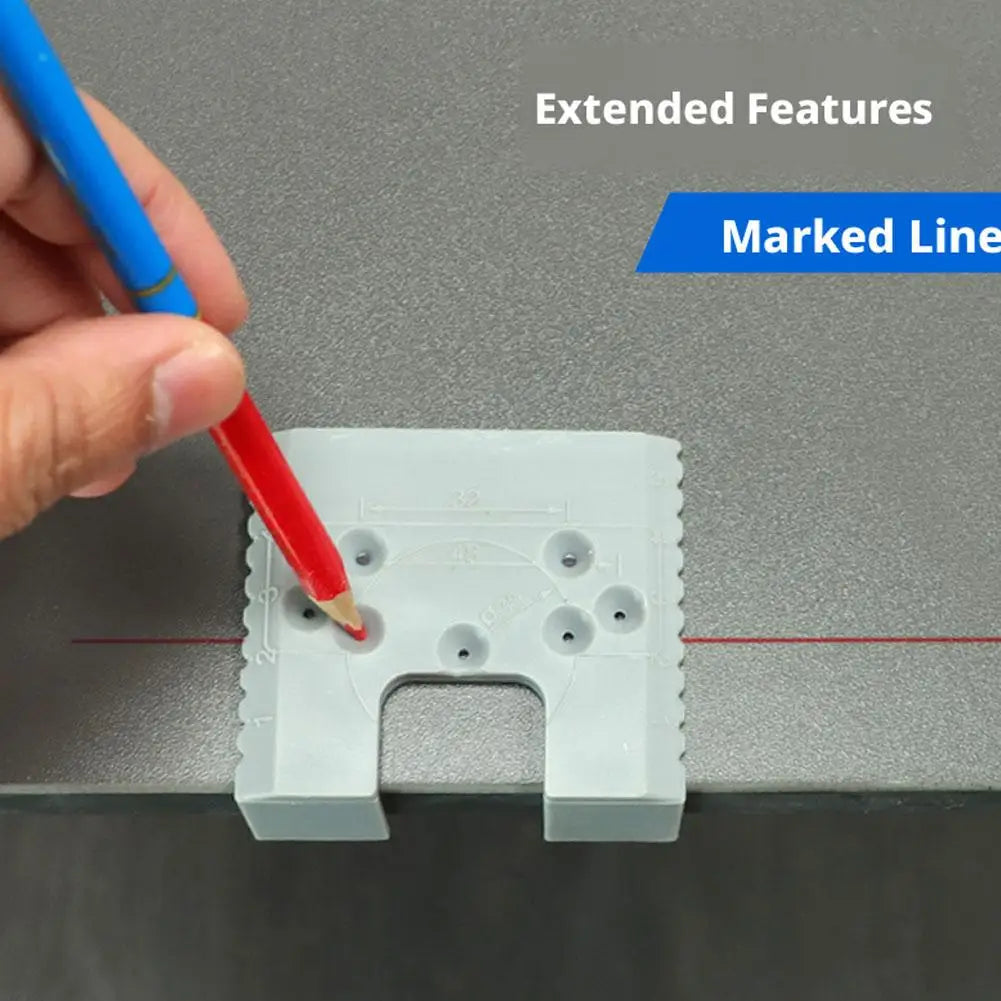

5. Multi-Purpose Marking & Layout

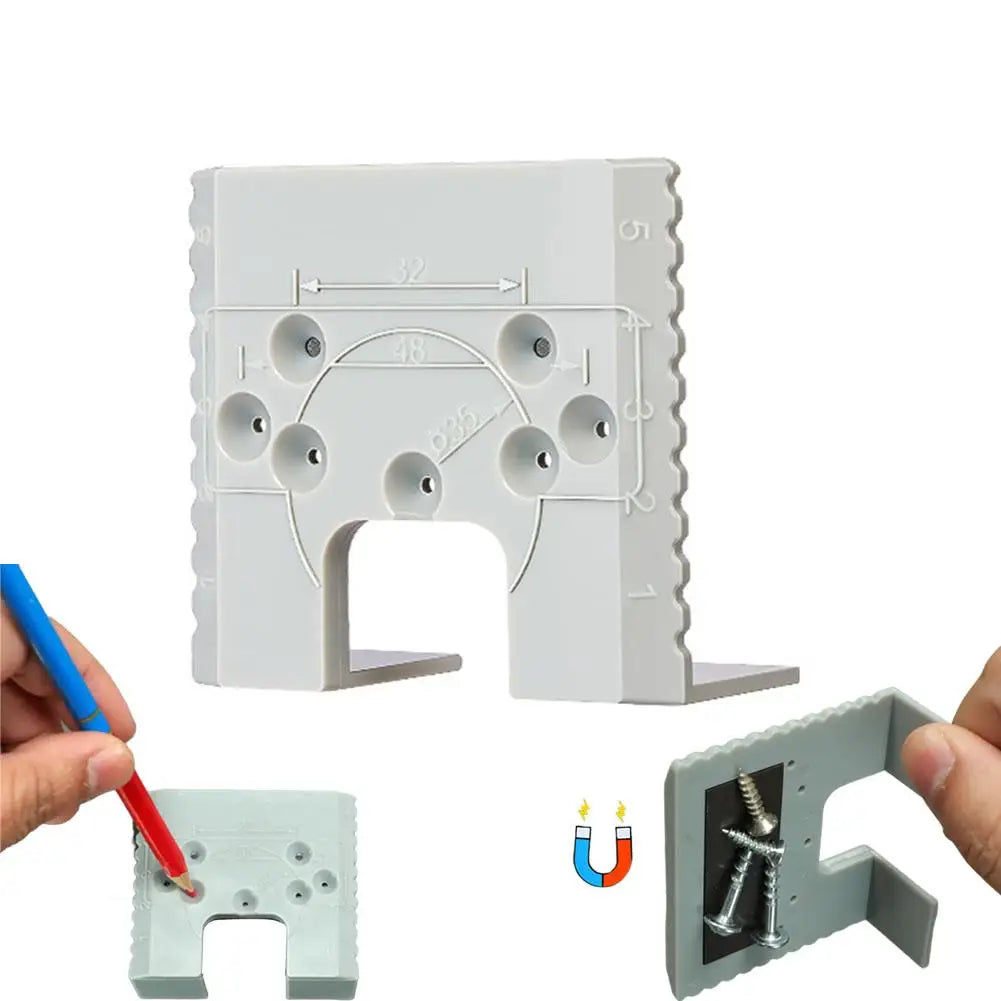

Beyond its primary function as a drilling guide, this tool also serves as an effective marking aid. Utilize its integrated scales and reference points (e.g., 32mm, 48mm, Ø35mm) to accurately draw lines and define layouts for other woodworking tasks, enhancing overall project precision.

Package list
Grey hinge mounting jig *1
