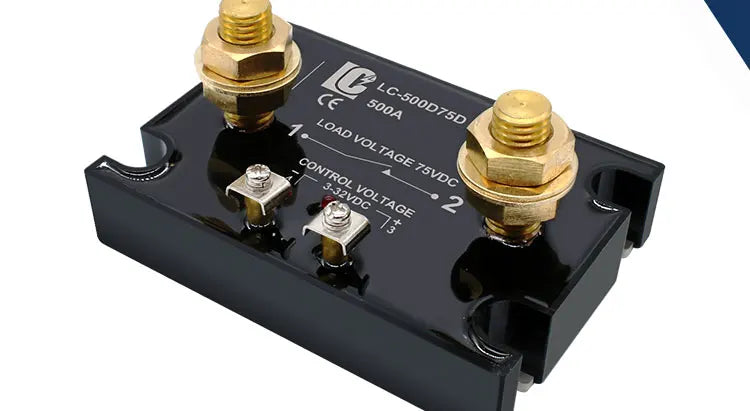

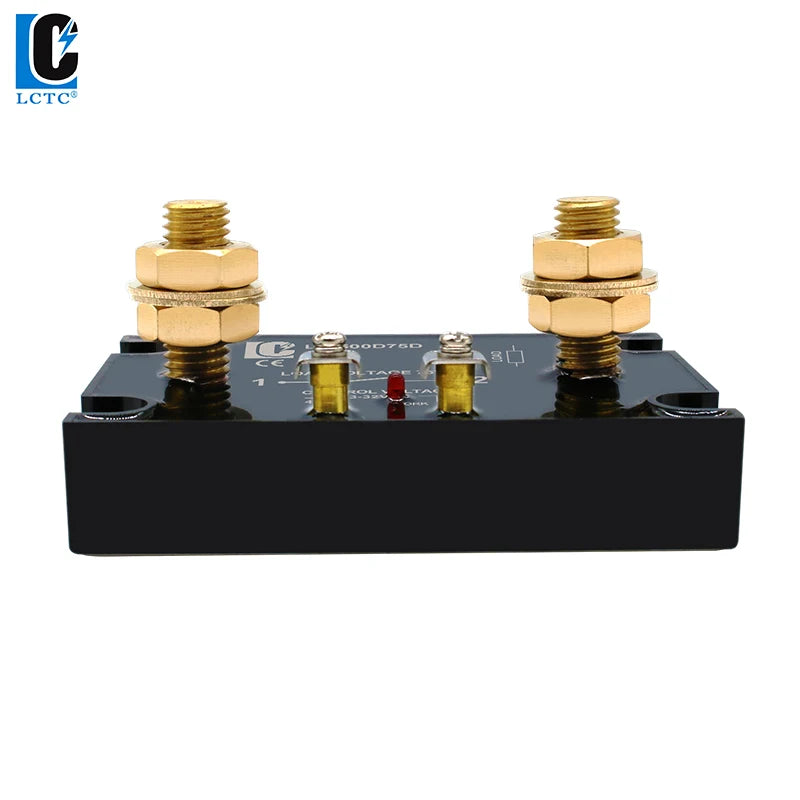

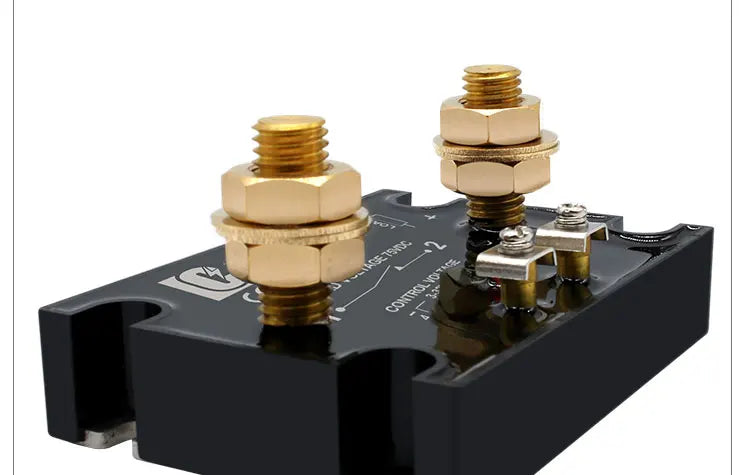

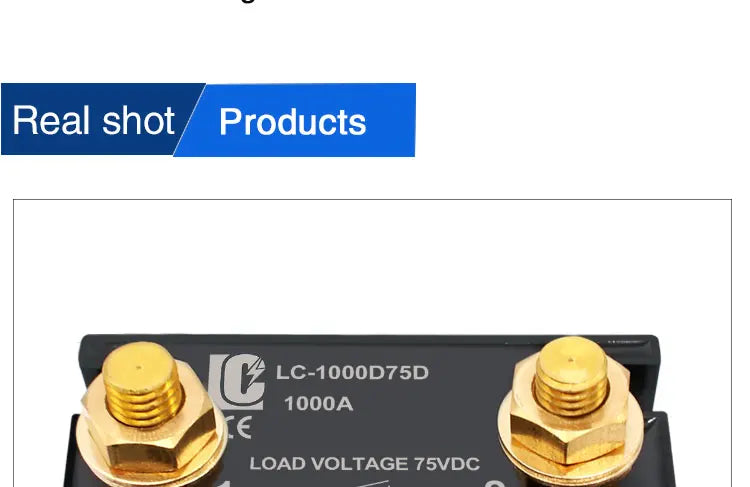

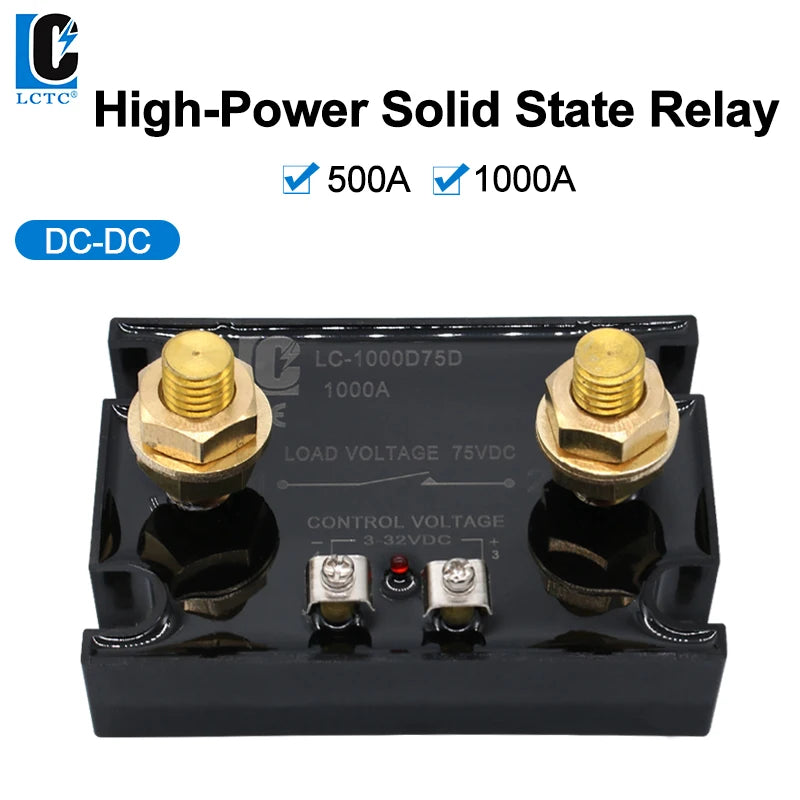

Lctc Dc Control Dc Solid State Relay 500a
Lctc Dc Control Dc Solid State Relay 500a
Couldn't load pickup availability
SPECIFICATIONS
Certification: CE
Contact Load: High Power
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Model Number: SSR-500A 1000A DD 75VDC
Origin: Mainland China
Power Source: DC
Protect Feature: Sealed
Theory: Solid State Relay
Use: Protective
Voltage: 75VDC
is_customized: Yes

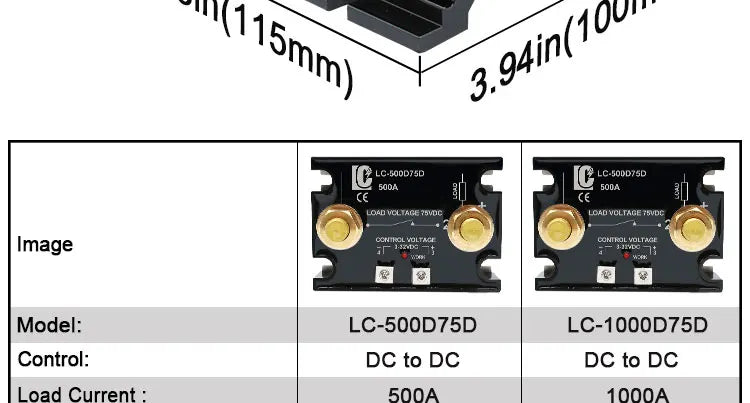

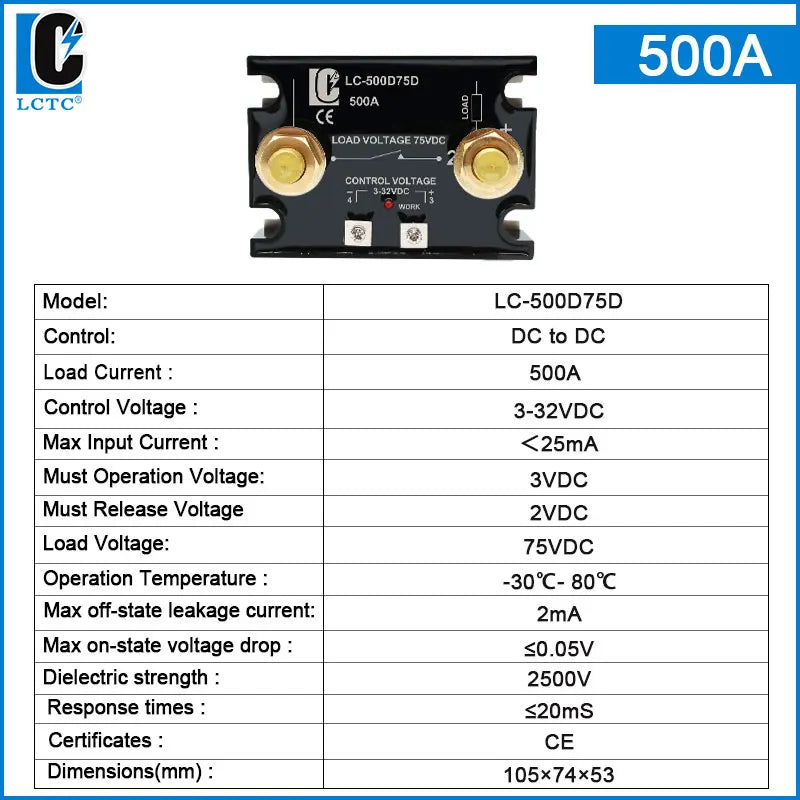

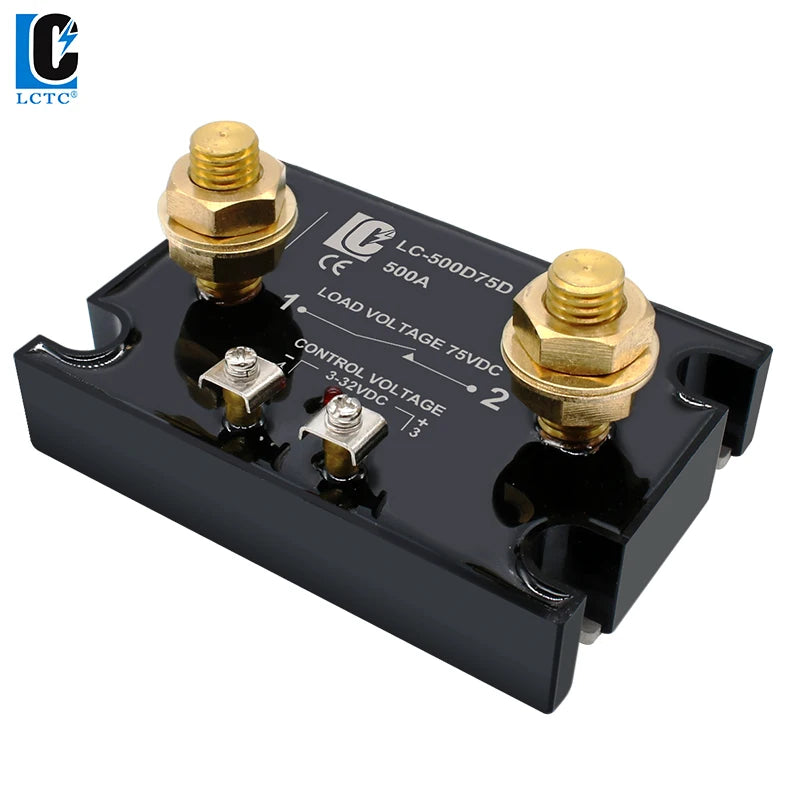

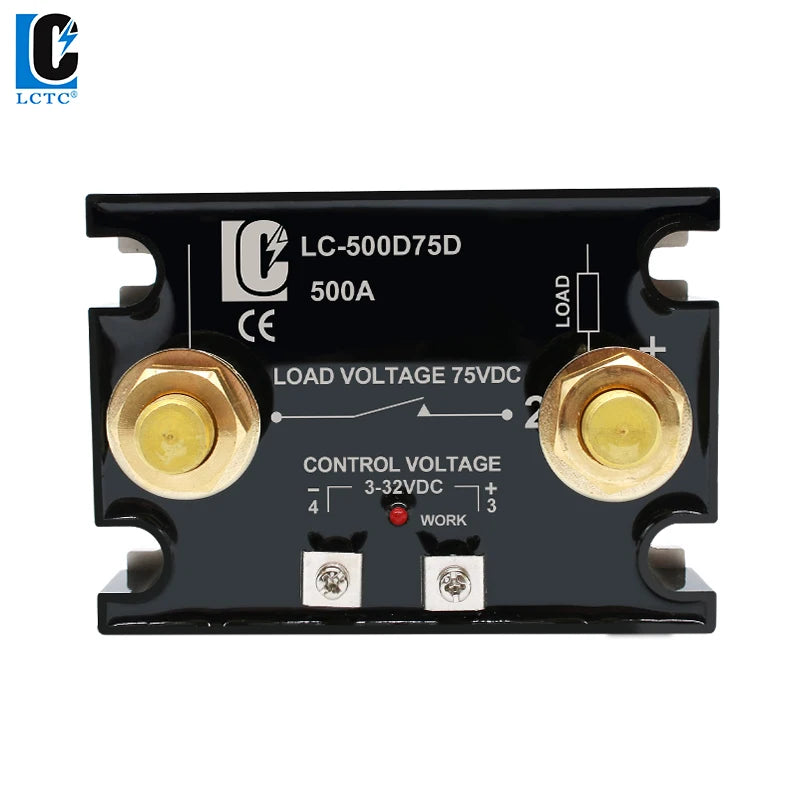

Model LC-500D75D

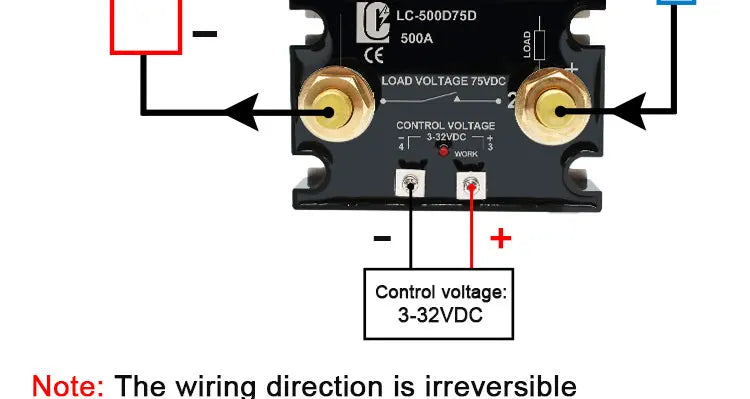

Control DC to DC
Load Current 500A

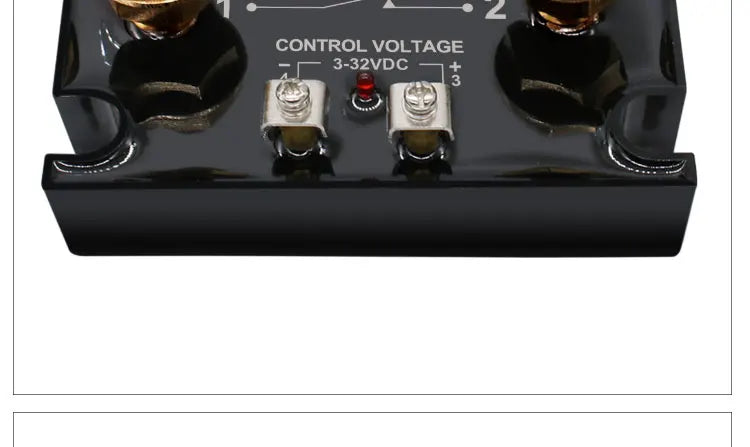

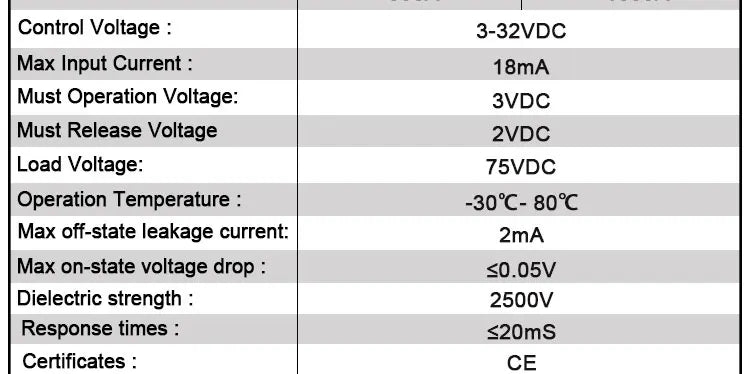

Control Voltage 3-32VDC
Max Input Current 18mA
Must Operation Voltage 3VDC
Must Release Voltage 2VDC
Load Voltage 75VDC
Operation Temperature -30℃ to 80℃
Max off-state leakage current 2mA
Max on-state voltage drop ≤0.05V
Dielectric strength 2500V
Certificates CE

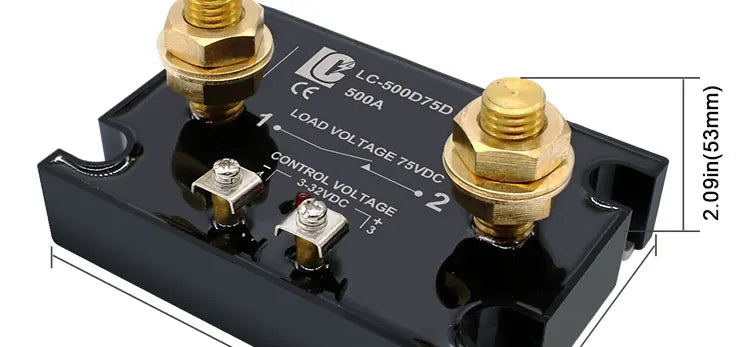

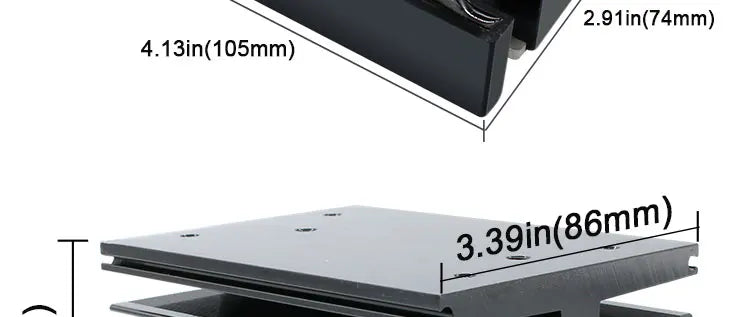

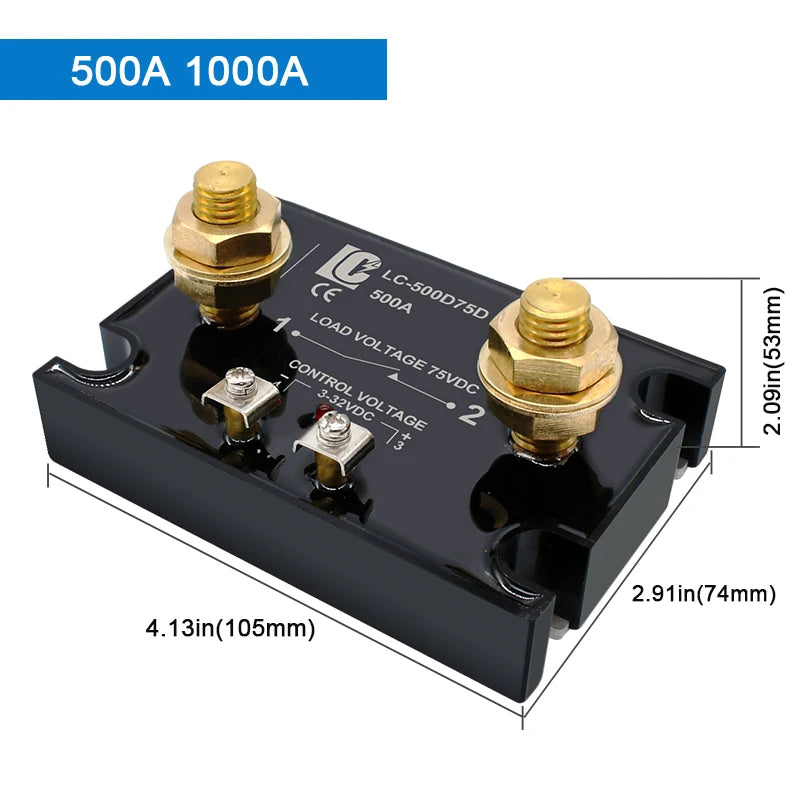

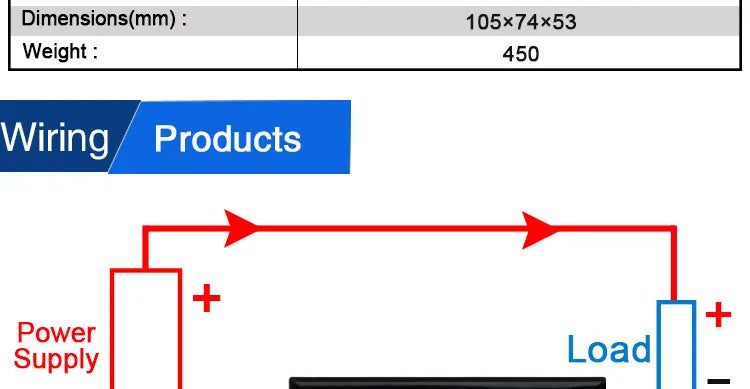

Dimensions(mm) 105L x 74W x 53H
Weight 450
Features
1.MOSFET output.
2.With LED indicator.
3.Low on-state resistance.
4.Photo isoation.
Precautions
1.Must add suppression circuit for inductive load.

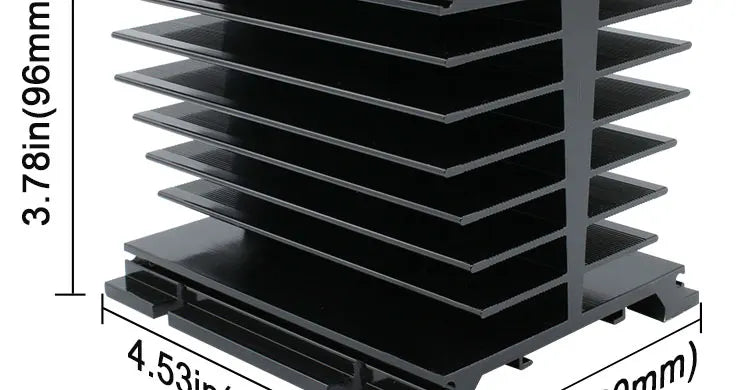

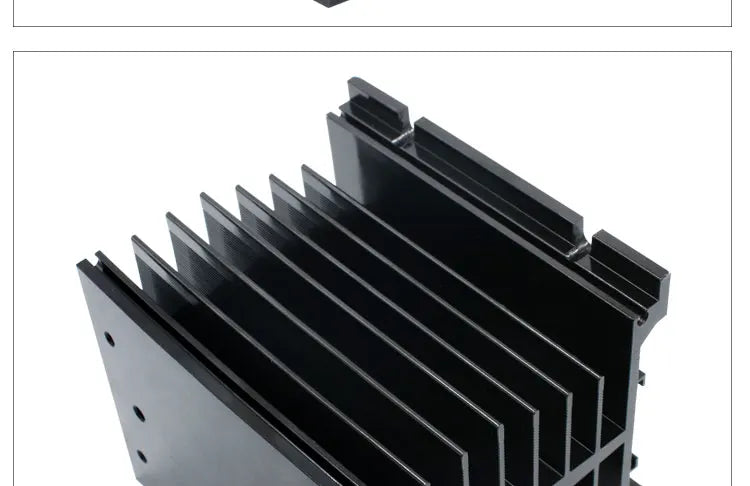

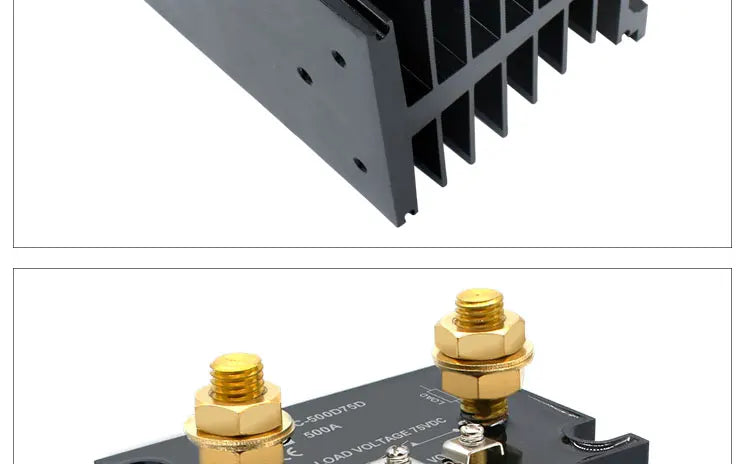

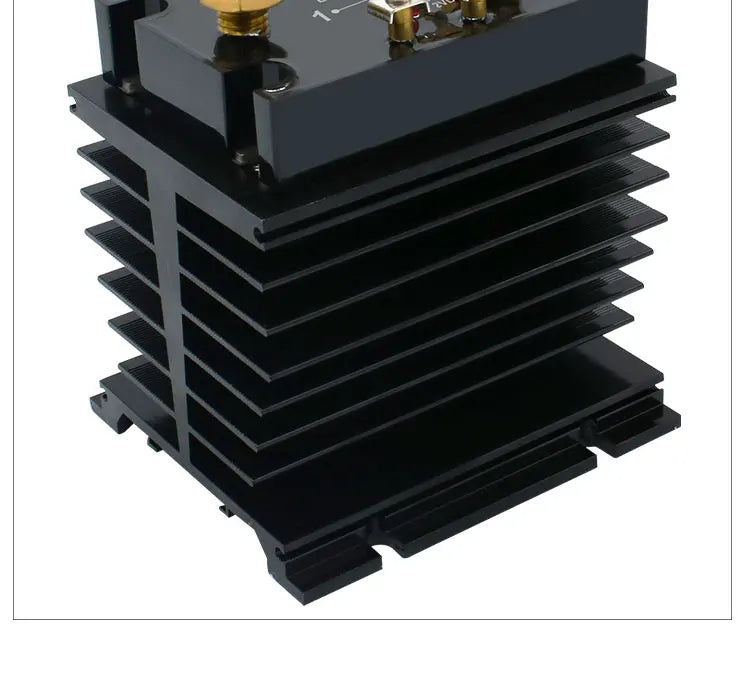

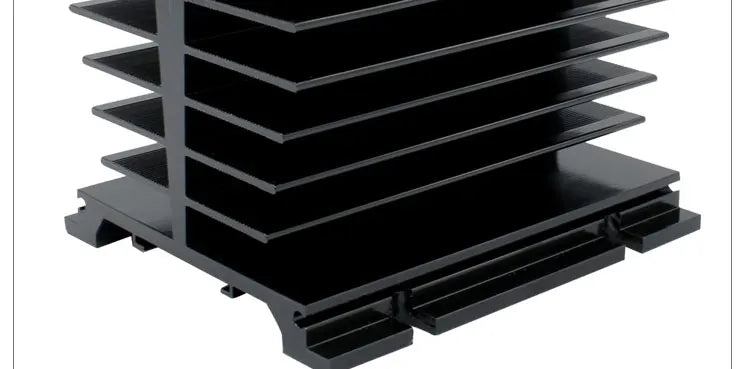

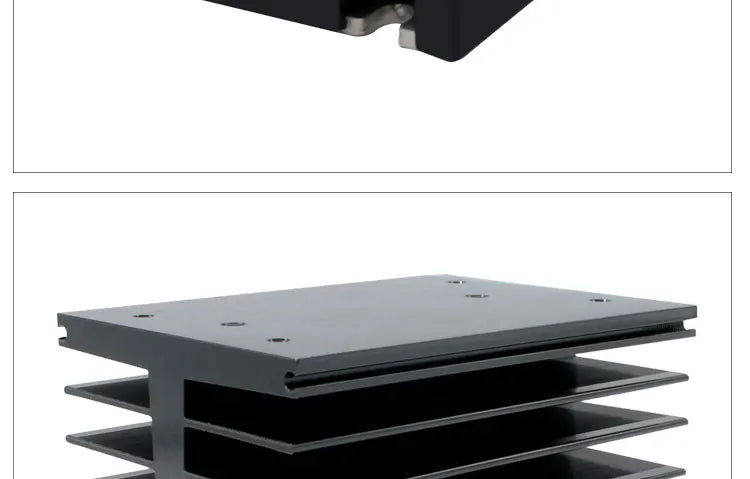

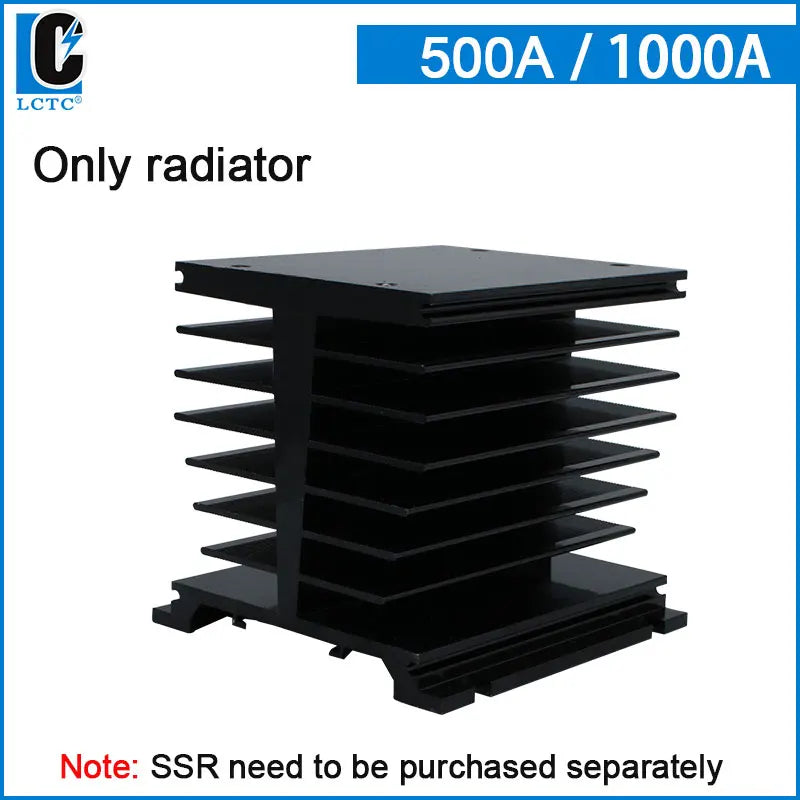

2.Apply heat-radiation silicon grease of a heat conductive sheet between the SSR and heat sink.
3.Tighten the ssr terminal screws properly.
4.Please do not use the relay beyond the descriptions in the data sheet.
