SPECIFICATIONS

Certification: CE,RoHS

For Vehicle Type: Cars

Four-wheel Drive Attributes: Motors

High-concerned chemical: none

Material: Metal

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Speed Controllers

Recommend Age: 14+y

Remote Control Peripherals/Devices: ESC

Tool Supplies: sticker

Upgrade Parts/Accessories: Lithium Battery

Use: Vehicles & Remote Control Toys

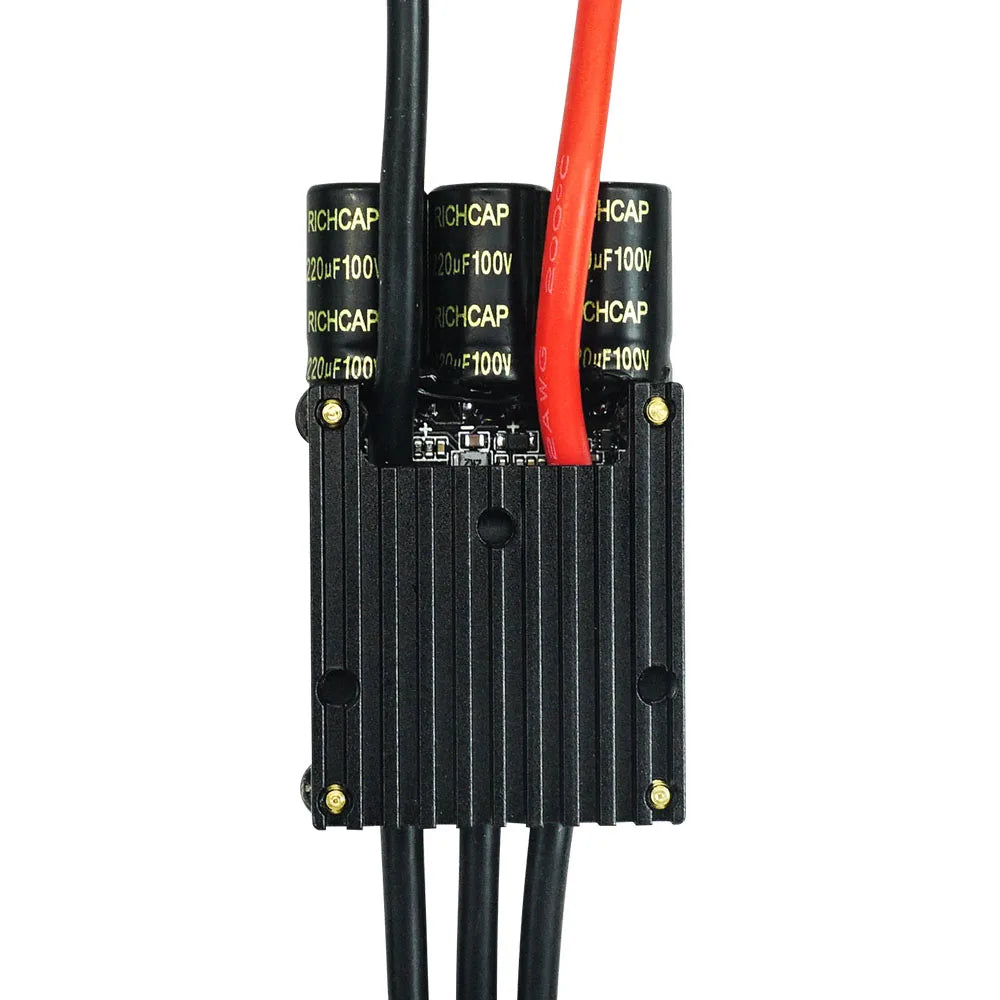

Specs:

• Firmware Version: 6.02(upgrade supported)

• Firmware: 60_MK5; Hardware Version: VESC_6_MK5

• Continuous current: 70A; instantaneous current: 200A

• Voltage: 14V-60V(Cells: 4-13S; safe for 4S to 12S, voltage spikes may not exceed 60V! )

• BEC: 5V@1A

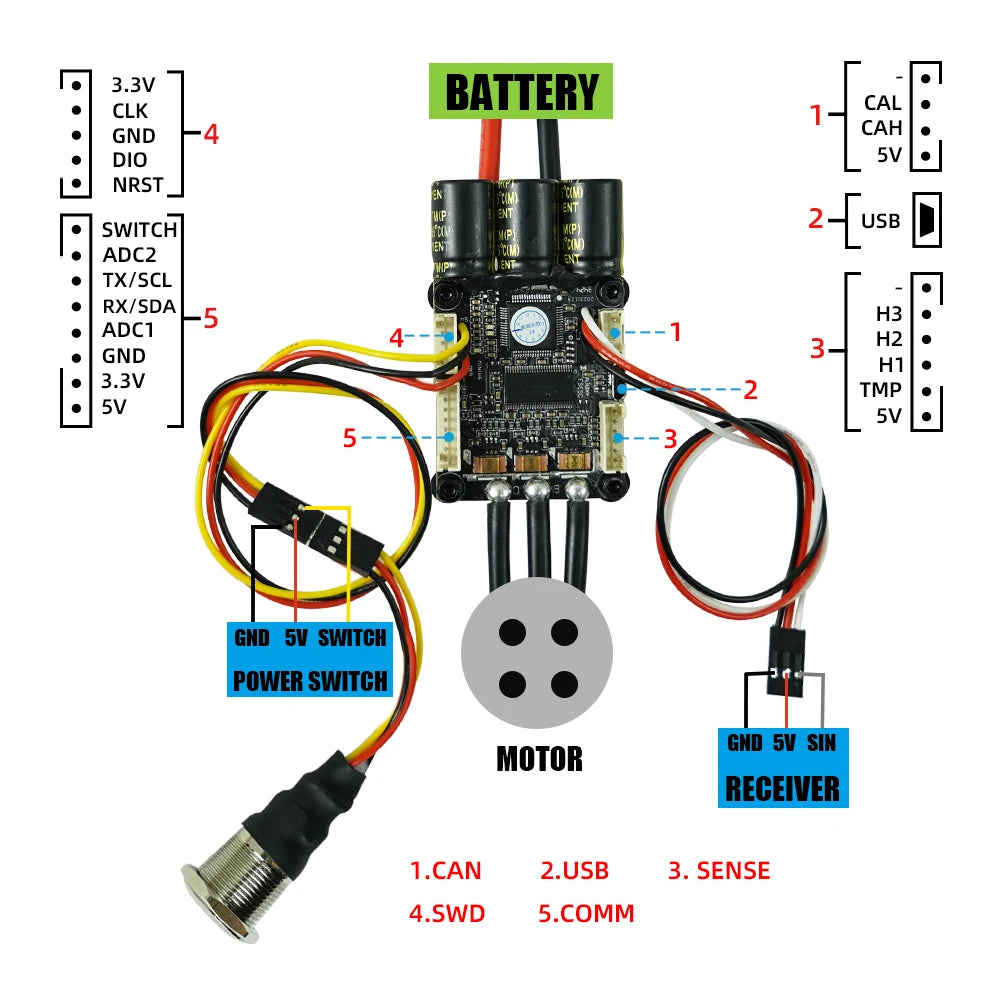

• Control Interface Ports: USB,CAN,UART

• Supported Sensors: ABI, HALL, AS5047, AS5048A

• Input Set Support: PPM, ADC, NRF, UART, SPI, IIC

• Modes:DC, BLDC, FOC (sinusoidal)

• Regenerative capacity: Yes

• Programmable: Yes

• Phase Filter: Yes

• On/off Button: self-resetting; Switch Diameter:16mm

• Motor wire: 12AWG; Power wire: 12AWG

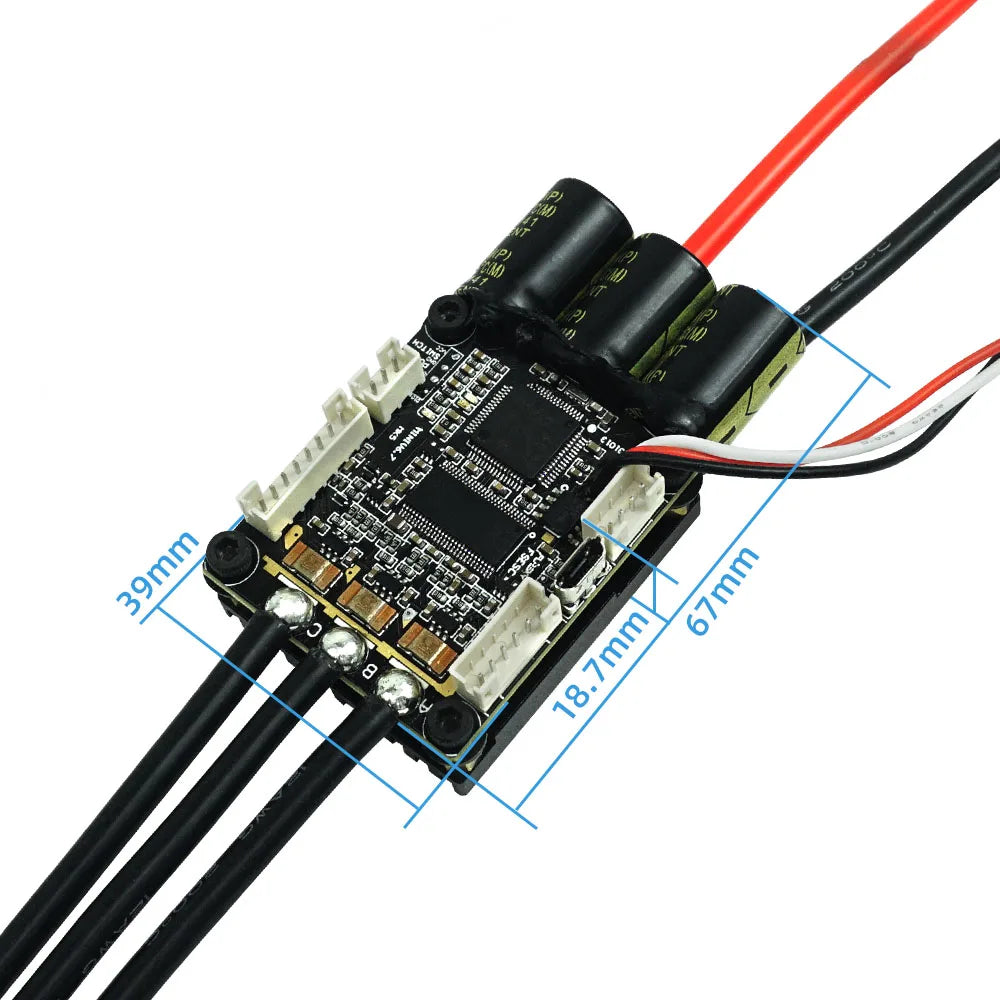

• Size:67x39x18.7mm(Including heatsink)

Upgraded Features:

1. Mini V6 MK5 is developed based on VESC_6_MK5, it adds phase filter circuit which can obtain more accurate

2. rotor position information at low speeds.

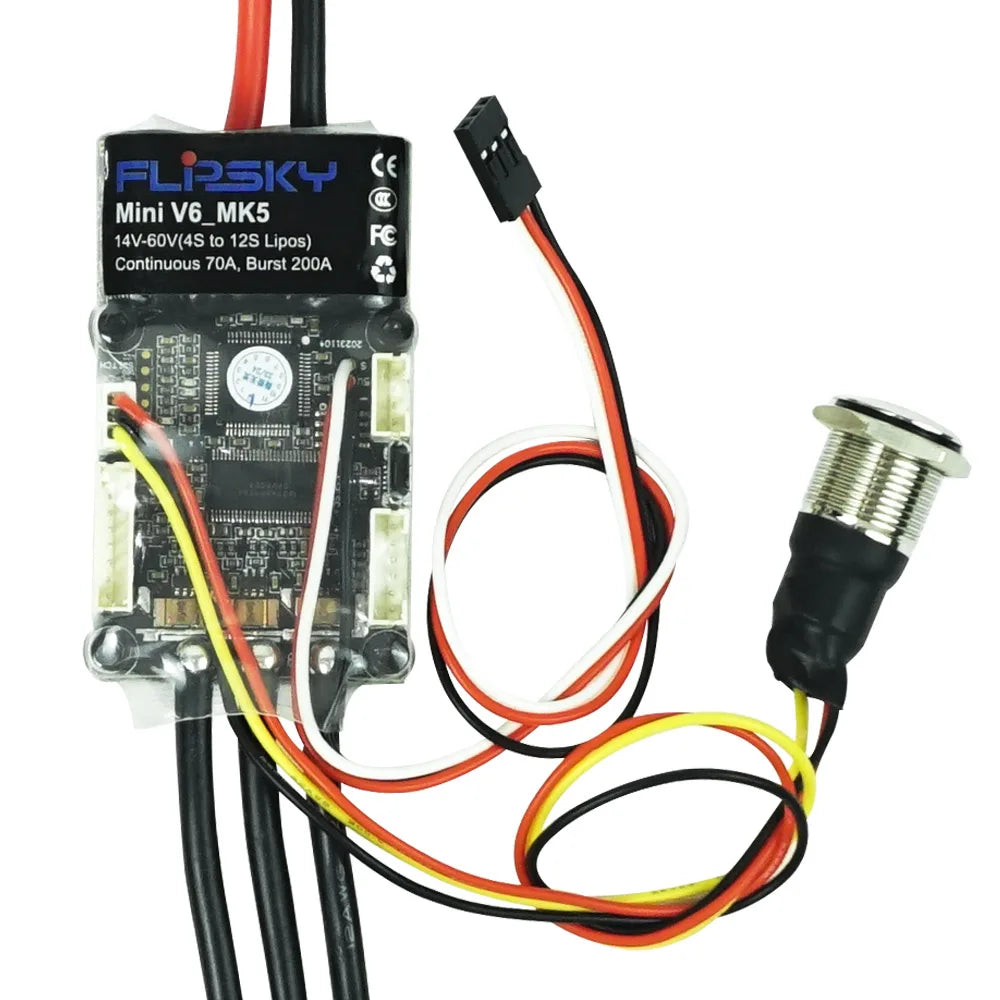

3. It’s integrated with smart switch function, supports manual power on/off, roll to start, auto turn off and led

4. indicates state.

5. Support four shutdown modes: ALWAYS_OFF,ALWAYS_ON,TOGGLE_BUTTON_ONLY and OFF_AFTER_.
